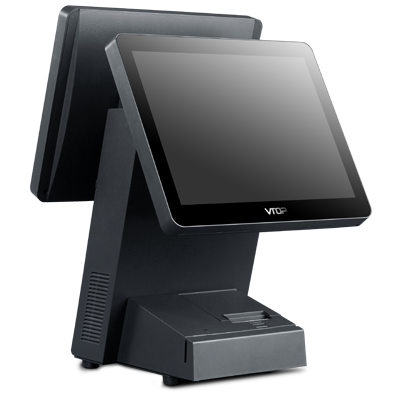

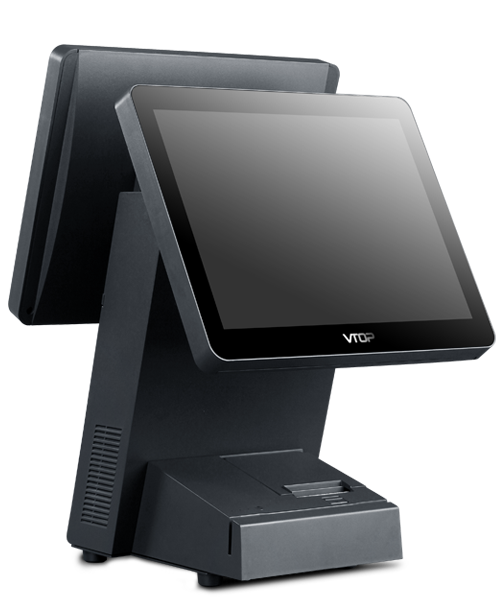

TE2-R8
Dual Display All In One POS
12.1" Capacitive Touch Screen
Integrated 2nd 12.1" Displays
12.1" Capacitive Touch Screen
Integrated 2nd 12.1" Displays
Excellent product quality
Low noise design with laptop power supply
Long-term stable operation
Long-term stable operation
Ergonomic Design
Ultrathin mirror design, generous and fashion
Integration design, space saving
The original bracket design
Excellent touch experience
Innovative modular design
Easy and quick maintenance
Integration design, space saving
The original bracket design
Excellent touch experience
Innovative modular design
Easy and quick maintenance
- SPECIFICATIONS
- RELATED PRODUCTS
- DOWNLOAD
- MODELTE2-R8
- ProcessorIntel Celeron Processor 1037U 1.8Ghz
- System Memory2 GB DDR3 (1 x 204-pin DDR3)
- Storage Device60G SSD
- Power Supply60W (12V/5A) External Power Adaptor
- Housing ColorDark Gray
- OS SupportWindows XP, POSReady 2009, Windows 7, POSReady 7, Windows 8.1
- Display & Touch
- LCD12.1" TFT LCD (LED Backlight)
- Resolution1024 x 768
- Touch10 point Capacitive Touch
- I/O Ports
- Serial Port3 x External: COM1 (RJ-11), COM2 , COM3(DB9)
- Printer Port1 x Bi-directional Parallel Port
- USB Port6 x External (4 Rear + 2 Side)
- Keyboard 1 x PS/2
- LAN Port1 x RJ45 100M LAN
- Audio Port1 x Line Out
- Video Port1 x VGA
- TF Card Slot1 x TF
- Mini-PCIe SlotN/A
- DC Output1 x 12V DC Jack 2.5 mm
- Built-in Device
- Built-in PrinterRP2B+
- Built-in MSRPA-MSR23 (Optional)
- Built-in RFID ReaderPA-RFID (Optional)
- Built-in WIFIN/A
- Built-in KeyboardN/A
- Physical Dimensions
- Dimensions (WxHxD)370 x 360 x 222 mm
- Carton Dimensions (WxHxD)450 x 480 x 310 mm
- Weight7.1kg (Net), 9.1kg (Gross)
- Accessories
- Integrated 2nd Display12.1" TFT LCD (1024 x 768)
- Customer DisplayN/A
- Receipt PrinterN/A
- POS KeyboardN/A
- Cash DrawerN/A
