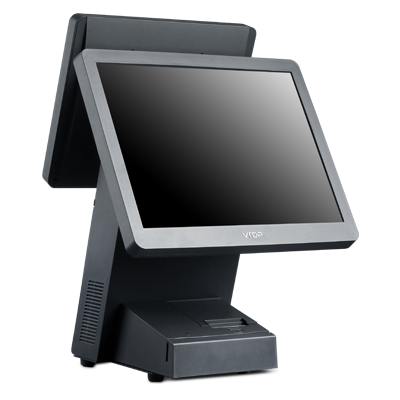

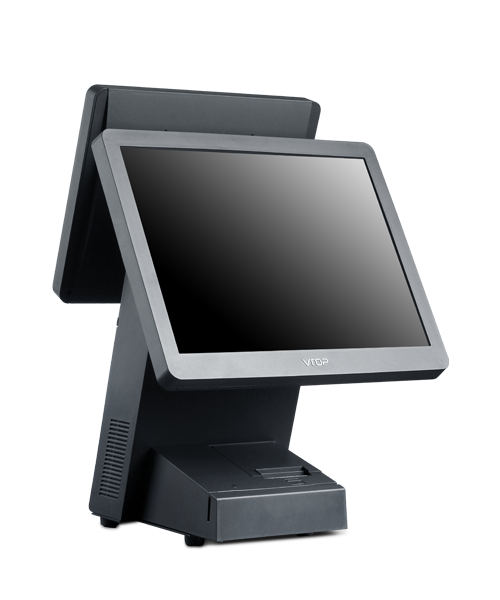

TE5-R4
Dual Display All In One POS

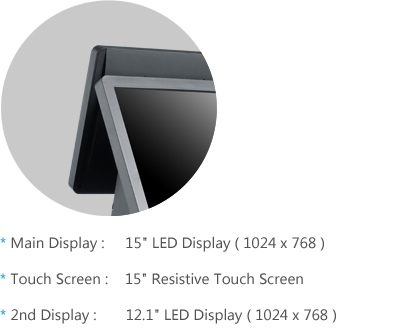

15" Resistive Touch Screen
Integrated 2nd 12.1" Displays
Excellent product quality
Low noise design with laptop power supply
Long-term stable operation
Ergonomic Design
Ultrathin mirror design, generous and fashion
Integration design, space saving
The original bracket design
Excellent touch experience
Innovative modular design
Easy and quick maintenance
MODELTE5-R4
ProcessorIntel Celeron Processor 1037U 1.8Ghz
System Memory2 GB DDR3 (1 x 204-pin DDR3)
Storage Device60G SSD
Power Supply60W (12V/5A) External Power Adaptor
Housing ColorDark Gray
OS SupportWindows XP, POSReady 2009, Windows 7, POSReady 7, Windows 8.1
Display & Touch
LCD15" TFT LCD (LED Backlight)
Resolution1024 x 768
Touch5-wire Resistive Touch
I/O Ports
Serial Port3 x External: COM1 (RJ-11), COM2 , COM3(DB9)
Printer Port1 x Bi-directional Parallel Port
USB Port6 x External (4 Rear + 2 Side)
Keyboard 1 x PS/2
LAN Port1 x RJ45 100M LAN
Audio Port1 x Line Out
Video Port1 x VGA
TF Card Slot1 x TF
Mini-PCIe SlotN/A
DC Output1 x 12V DC Jack 2.5 mm
Built-in Device
Built-in PrinterRP2B+
Built-in MSRPA-MSR23 (Optional)
Built-in RFID ReaderPA-RFID (Optional)
Built-in WIFIN/A
Built-in KeyboardN/A
Physical Dimensions
Dimensions (WxHxD)370 x 360 x 222 mm
Carton Dimensions (WxHxD)450 x 480 x 310 mm
Weight7.1kg (Net), 9.1kg (Gross)
Accessories
Integrated 2nd Display12.1" TFT LCD (1024 x 768)
Customer DisplayN/A
Receipt PrinterN/A
POS KeyboardN/A
Cash DrawerN/A
