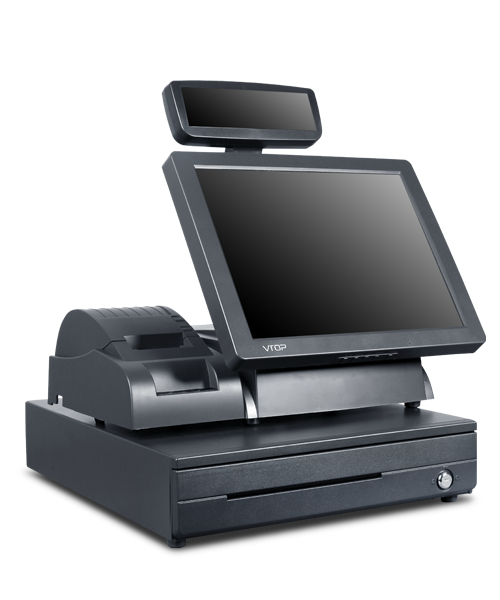

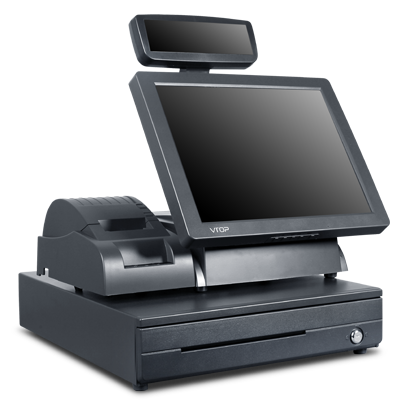

MODELTH5-H128

ProcessorIntel Atom D525 1.8GHz

System Memory2 GB DDR3 (1 x 204-pin DDR3)

Storage Device60G SSD

Power Supply60W (12V/5A) External Power Adaptor

Housing ColorDark Gray

OS SupportWindows XP, POSReady 2009, Windows 7, POSReady 7, Windows 8.1

Display & Touch

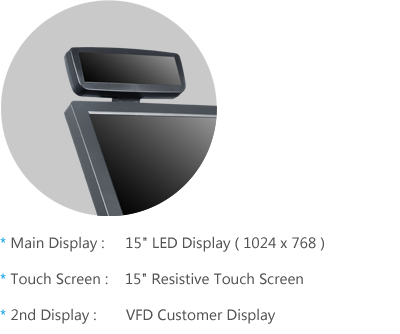

LCD15" TFT LCD (LED Backlight)

Resolution1024 x 768

Touch5-wire Resistive Touch

I/O Ports

Serial Port3 x External: COM1 (RJ-11), COM2 , COM3(DB9)

Printer Port1 x Bi-directional Parallel Port

USB Port5 x External (4 Rear + 1 Side)

Keyboard 1 x PS/2

LAN Port1 x RJ45 100M LAN

Audio Port1 x Line Out

Video Port1 x VGA

TF Card Slot1 x TF

Mini-PCIe SlotN/A

DC Output1 x 12V DC Jack 2.5 mm

Built-in Device

Built-in PrinterN/A

Built-in MSRN/A

Built-in RFID ReaderN/A

Built-in WIFIN/A

Built-in KeyboardN/A

Physical Dimensions

Dimensions (WxHxD)370 x 360 x 222 mm

Carton Dimensions (WxHxD)450 x 480 x 310 mm

Weight7.1kg (Net), 9.1kg (Gross)

Accessories

Integrated 2nd DisplayN/A

Customer DisplayCD-V10E

Receipt PrinterRP2A

POS KeyboardN/A

Cash DrawerCR-400A (3-position Lock)

TH5-H118

TH5-H138

TH5-H168

• DOWNLOADTH5-H128 User's Manual
• DOWNLOADBUSIN Mainboard Drivers(D525 150528)
• DOWNLOADBUSIN Resistive Touch Driver
• DOWNLOADBUSIN Customer Displays(CD-V10E)
• DOWNLOADBUSIN Wallpapers
• DOWNLOADBUSIN Demo Pictures
